Irus

Specification	Value
Table Size (X & Y)	700 x 400 mm
Travel (X)	500 mm
Travel (Y / Z)	400 / 500 mm
T-Slot (No. x Width)	4 x 18 x 100
Max. Load on Table	4000 Kg
Face to Table Top	100 mm
Table Variants	A-Axis (4 Axis) and A/C Axis (5 Axis)
Rapid (X/Y/Z)	30 / 30 / 30 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	5.5 / 7 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	800 x 500 mm
Travel (X)	600 mm
Travel (Y / Z)	500 / 500 mm
T-Slot (No. x Width)	4 x 18 x 100
Max. Load on Table	5000 Kg
Face to Table Top	150 - 650 mm
Table Variants	A-Axis (4 Axis) and A/C Axis (5 Axis)
Rapid (X/Y/Z)	30 / 30 / 30 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	7.5 / 11 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	1000 x 600 mm
Travel (X)	800 mm
Travel (Y / Z)	600 / 550 mm
T-Slot (No. x Width)	4 x 18 x 100
Max. Load on Table	6000 Kg
Face to Table Top	150 - 650 mm
Table Variants	A-Axis (4 Axis) and A/C Axis (5 Axis)
Rapid (X/Y/Z)	30 / 30 / 30 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	7.5 / 11 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	1200 x 1000 mm
Travel (X)	1000 mm
Travel (Y / Z)	800 / 600 mm
T-Slot (No. x Width)	4 x 18 x 100
Max. Load on Table	8000 Kg
Face to Table Top	150 - 650 mm
Table Variants	A-Axis (4 Axis) and A/C Axis (5 Axis)
Rapid (X/Y/Z)	30 / 30 / 30 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	7.5 / 11 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X x Y)	1400 x 1200/1600/2200/3200 mm
Travel - X	1200/1600/2200/3200 mm
Travel - Y	1200 mm
Travel - Z	750 (850) mm
T-Slot (No. x Width)	7 x 22 x 160
Max. Load on Table	4000 Kg
Face to Table Top	150 - 850 (1000) mm
Rapid (X/Y/Z)	30/20/20 m/min
Feed (X/Y/Z)	10 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 (50) / 9000/6000 RPM
Spindle Power	11 / 15 Kw
Axis Motor (X/Y/Z)	4 / 3 / 5 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X x Y)	1800 x 1600/2200/3200 mm
Travel - X	1600/2200/3200 mm
Travel - Y	1600 mm
Travel - Z	750 (850) mm
T-Slot (No. x Width)	7 x 22 x 160
Max. Load on Table	5000 Kg
Face to Table Top	150 - 850 (1000) mm
Rapid (X/Y/Z)	20/20/20 m/min
Feed (X/Y/Z)	10 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 50 / 6000 / (9000) RPM
Spindle Power	15 / 18.5 Kw
Axis Motor (X/Y/Z)	4 / 3 / 5 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X x Y)	2400 x 2200/3200/4200/6200 mm
Travel - X	2200/3200/4200/6200 mm
Travel - Y	2200 mm
Travel - Z	850 (1000) mm
T-Slot (No. x Width)	7 x 22 x 160
Max. Load on Table	6000 Kg
Face to Table Top	150 - 1000 mm
Rapid (X/Y/Z)	20/20/20 m/min
Feed (X/Y/Z)	10 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 50 / 6000 / (9000) RPM
Spindle Power	15 / 18.5 Kw
Axis Motor (X/Y/Z)	4 / 3 / 5 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X x Y)	3400 x 3200/4200/6200 mm
Travel - X	3200/4200/6200 mm
Travel - Y	3200 mm
Travel - Z	850 (1200) mm
T-Slot (No. x Width)	7 x 22 x 160
Max. Load on Table	8000 Kg
Face to Table Top	150 - 1000 (1000) mm
Rapid (X/Y/Z)	20/20/20 m/min
Feed (X/Y/Z)	10 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 50 / 6000 / (9000) RPM
Spindle Power	15 / 18.5 Kw
Axis Motor (X/Y/Z)	4 / 3 / 5 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	800 x 500 mm
Travel (X)	600 mm
Travel (Y / Z)	500/500 mm
T-Slot (No. x Width)	4 x 18 x 100
Max. Load on Table	500 Kg
Spindle Face to Table Top	100-500 mm
Rapid (X/Y/Z)	30/30/20 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	5.5/7 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	1000 x 550 mm
Travel (X)	850 mm
Travel (Y / Z)	550/500 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	700 Kg
Spindle Face to Table Top	150-700 mm
Rapid (X/Y/Z)	30/30/20 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	7.5/11 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	1300 x 600 mm
Travel (X)	1100 mm
Travel (Y / Z)	600/600 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	1000 Kg
Spindle Face to Table Top	150-750 mm
Rapid (X/Y/Z)	30/30/20 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 9000 RPM
Spindle Power	7.5/11 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	1500 x 750 mm
Travel (X)	1300 mm
Travel (Y / Z)	750/750 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	1500 Kg
Spindle Face to Table Top	150-900 mm
Rapid (X/Y/Z)	20/20/15 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 (50) / 9000 RPM
Spindle Power	11/15 Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	20 / 24
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	2200 x 1000 mm
T-Slots (No. x Width)	22 x 7 x 160
X Axis Travel	2200 mm
Y Axis Travel	1200 mm
Z Axis Travel	850 mm
Distance from Spindle Nose to Table Centre	150-1000 mm
Distance Between Columns	1400 mm
Max Loading Capacity	4000 Kg
X Axis Rapid	20 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	17000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	3200 x 1500 mm
T-Slots (No. x Width)	22 x 9 x 160
X Axis Travel	3200 mm
Y Axis Travel	1600 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	150-1150 mm
Distance Between Columns	1700 mm
Max Loading Capacity	10000 Kg
X Axis Rapid	20 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	31000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	4200 x 1500 mm
T-Slots (No. x Width)	22 x 9 x 160
X Axis Travel	4200 mm
Y Axis Travel	1600 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	150-1150 mm
Distance Between Columns	1700 mm
Max Loading Capacity	12000 Kg
X Axis Rapid	15 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	36000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	3200 x 2100 mm
T-Slots (No. x Width)	28 x 10 x 200
X Axis Travel	3200 mm
Y Axis Travel	2200 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	150-1150 mm
Distance Between Columns	2300 mm
Max Loading Capacity	10000 Kg
X Axis Rapid	20 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	33000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	4200 x 2100 mm
T-Slots (No. x Width)	28 x 10 x 200
X Axis Travel	4200 mm
Y Axis Travel	2200 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	150-1150 mm
Distance Between Columns	2300 mm
Max Loading Capacity	14000 Kg
X Axis Rapid	15 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	40000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size	5200 x 2100 mm
T-Slots (No. x Width)	28 x 10 x 200
X Axis Travel	5200 mm
Y Axis Travel	2200 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	150-1150 mm
Distance Between Columns	2300 mm
Max Loading Capacity	18000 Kg
X Axis Rapid	15 m/min
Y Axis Rapid	20 m/min
Z Axis Rapid	15 m/min
Spindle Motor	18.5 / 22 Kw
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Weight	45000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Pallet Size	500 x 500 mm
X Axis Travel	850 mm
Y Axis Travel	700 mm
Z Axis Travel	850 mm
Distance from Spindle Nose to Table Centre	100-950 mm
Max Loading Capacity	800 Kg
Rapid (X/Y/Z)	30/30/30 m/min
Pallet Type	24-M16 x P2.0
Max Spindle Speed	9000 RPM
ATC	BT 40
Tool Storage	24
Spindle Motor	11/15 Kw
Power Supply	30 KVA
Weight	12000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Pallet Size	500 x 500 mm
X Axis Travel	850 mm
Y Axis Travel	700 mm
Z Axis Travel	850 mm
Distance from Spindle Nose to Table Centre	100-950 mm
Max Loading Capacity	800 Kg
Rapid (X/Y/Z)	30/30/30 m/min
Pallet Type	24-M16 x P2.0
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Spindle Motor	15/18.5 Kw
Power Supply	35 KVA
Weight	12000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Pallet Size	630 x 630 mm
X Axis Travel	1100 mm
Y Axis Travel	850 mm
Z Axis Travel	1000 mm
Distance from Spindle Nose to Table Centre	100-1100 mm
Max Loading Capacity	1000 Kg
Rapid (X/Y/Z)	30/30/30 m/min
Pallet Type	24-M16 x P2.0
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Spindle Motor	15/18.5 Kw
Power Supply	40 KVA
Weight	18000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Pallet Size	800 x 800 mm
X Axis Travel	1450 mm
Y Axis Travel	1050 mm
Z Axis Travel	1200 mm
Distance from Spindle Nose to Table Centre	150-1350 mm
Max Loading Capacity	1800 Kg
Rapid (X/Y/Z)	24/24/24 m/min
Pallet Type	24-M16 x P2.0
Max Spindle Speed	6000 RPM
ATC	BT 50
Tool Storage	24
Spindle Motor	15/18.5 Kw
Power Supply	40 KVA
Weight	22000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Swing Over Bed	600 mm
Std. Turning Diameter	300 mm
Max Turning Diameter	500 mm
Max Turning Length	460 mm
X Axis Travel	268 mm
Z Axis Travel	488 mm
Chuck Size	12 Inch
Rapid X Axis	20 m/min
Rapid Z Axis	24 m/min
Max Spindle Speed	3000 RPM
Spindle Nose	A2-8
No. of Tool Station	12
OD Tool Size	25 mm
Spindle Motor	18.5/22 Kw
Power Supply	40 KVA
Weight	5000 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Swing Over Bed	900 mm
Std. Turning Diameter	390 mm
Max Turning Diameter	830 mm
Max Turning Length	750 mm
X Axis Travel	495 mm
Z Axis Travel	780 mm
Chuck Size	15 Inch
Rapid X Axis	20 m/min
Rapid Z Axis	20 m/min
Max Spindle Speed	2000 RPM
Spindle Nose	A2-11
No. of Tool Station	12
OD Tool Size	32 mm
Spindle Motor	18.5/22 Kw
Power Supply	45 KVA
Weight	8500 Kg
Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Work Table & Travel	6000 x 1600 mm
Travel - X	6000 mm
Travel - Y	1600 mm
Travel - Z	1000 mm
T-Slot	28 mm
Max. Load on Table	3000-6000 Kg
Face to Table Top	150-1150 mm
Distance Between Column	2000 mm
Rapid (X/Y/Z)	6/8/8 m/min
Feed (X/Y/Z)	4 m/min
Spindle Taper / Dia / Range	BT 50 / Ø 190 / 6000 RPM
Spindle Power	30 Kw
Positioning (X/Y/Z)	± 0.07 mm
Repeatability (X/Y/Z)	± 0.05 mm
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Work Table & Travel	6000 x 2200 mm
Travel - X	6000 mm
Travel - Y	2200 mm
Travel - Z	1000 (1200) mm
T-Slot	28 mm
Max. Load on Table	3000-5000 Kg
Face to Table Top	150-1150 mm
Distance Between Column	2600 mm
Rapid (X/Y/Z)	6/8/8 m/min
Feed (X/Y/Z)	4 m/min
Spindle Taper / Dia / Range	BT 50 / Ø 190 / 6000 RPM
Spindle Power	30 Kw
Positioning (X/Y/Z)	± 0.08 mm
Repeatability (X/Y/Z)	± 0.05 mm
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Work Table & Travel	14000 x 3000 mm
Travel - X	6000/10000/12000 mm
Travel - Y	4000 mm
Travel - Z	1250 (1500) mm
T-Slot	28 mm
Max. Load on Table	10000-16000 Kg
Face to Table Top	550-1800 mm
Distance Between Column	4500 mm
Rapid (X/Y/Z)	6/6/6 m/min
Feed (X/Y/Z)	4 m/min
Spindle Taper / Dia / Range	BT 50 / Ø 190 / 6000 RPM
Spindle Power	30 Kw
Positioning (X/Y/Z)	± 0.08 mm
Repeatability (X/Y/Z)	± 0.05 mm
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Work Table & Travel	12000 x 4000 mm
Travel - X	6000/10000/12000 mm
Travel - Y	4000 (5000) mm
Travel - Z	1250 (1500) mm
T-Slot	28 mm
Max. Load on Table	10000-16000 Kg
Face to Table Top	550-1800 mm
Distance Between Column	5500 mm
Rapid (X/Y/Z)	6/6/6 m/min
Feed (X/Y/Z)	4 m/min
Spindle Taper / Dia / Range	BT 50 / Ø 190 / 6000 RPM
Spindle Power	30 Kw
Positioning (X/Y/Z)	± 0.08 mm
Repeatability (X/Y/Z)	± 0.05 mm
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	2500 x 500 / (650) mm
Travel (X)	2500 mm
Travel (Y / Z)	450(580) / 500 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	2500 Kg
Spindle Face to Table Top	100 - 600 / (150 - 650) mm
Rapid (X/Y/Z)	60 / 28 / 28 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 10000 / (BT 50 / 9000) RPM
Spindle Power	7.5 / 11 (11/15) (18/22) Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	12 / 20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	4500 x 500 / (650) mm
Travel (X)	4500 mm
Travel (Y / Z)	450(580) / 500 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	3500 Kg
Spindle Face to Table Top	100 - 600 / (150 - 650) mm
Rapid (X/Y/Z)	60 / 28 / 28 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 10000 / (BT 50 / 9000) RPM
Spindle Power	7.5 / 11 (11/15) (18/22) Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	12 / 20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	6500 x 500 / (650) mm
Travel (X)	6500 mm
Travel (Y / Z)	450(580) / 500 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	4500 Kg
Spindle Face to Table Top	100 - 600 / (150 - 650) mm
Rapid (X/Y/Z)	60 / 28 / 28 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 10000 / (BT 50 / 9000) RPM
Spindle Power	7.5 / 11 (11/15) (18/22) Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	12 / 20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

Specification	Value
Table Size (X & Y)	8500 x 500 / (650) mm
Travel (X)	8500 mm
Travel (Y / Z)	450(580) / 500 mm
T-Slot (No. x Width)	5 x 18 x 100
Max. Load on Table	5500 Kg
Spindle Face to Table Top	100 - 600 / (150 - 650) mm
Rapid (X/Y/Z)	60 / 28 / 28 m/min
Guideway (X/Y/Z)	Linear Roller Guideways
Spindle Taper / Range	BT 40 / 10000 / (BT 50 / 9000) RPM
Spindle Power	7.5 / 11 (11/15) (18/22) Kw
Axis Motor (X/Y/Z)	2 / 2 / 3 Kw
Positioning (X/Y/Z)	± 0.005 / 300 mm
Repeatability (X/Y/Z)	± 0.003 / 300 mm
Tool Storage Capacity	12 / 20 / 24 / 30
CNC Controller	Mitsubishi / Fanuc / Siemens

INNOVATE | INTEGRATE | DELIVER

Welcome To
IRUS Engineering

Founded in 2006, IRUS Engineering Pvt. Ltd. is a leading manufacturer of advanced CNC machine tools and precision engineering solutions. For nearly two decades, we have remained at the forefront of technological innovation, delivering robust, high-performance machining systems engineered to meet the evolving demands of modern industry. Through a combination of engineering expertise, application-focused solutions, and dedicated customer support, IRUS enables our customers across India and international markets to achieve exceptional levels of precision, productivity, and operational efficiency.

Built on a strong foundation of mechatronics, automation, and advanced engineering, we continuously embrace Industry 4.0 technologies by incorporating intelligent machine features, IoT-ready platforms, digital connectivity, and energy-efficient systems into its solutions. This enables our customers to enhance process control, improve productivity, and stay competitive in an increasingly connected manufacturing environment.

Discover Our Story

Innovation-Driven Customized Manufacturing Solutions

IRUS combines advanced engineering with application-specific customization to deliver intelligent machine tool solutions and turnkey manufacturing systems. Every solution is engineered around our customer's process, production goals, and future automation needs.

Precision & Performance Excellence

IRUS excels in the provision of high-rigidity machine structures, superior accuracy, and consistent machining performance for demanding applications.

Made in India, Built for Global Standards

Proudly manufactured in India, IRUS machines are engineered to meet global standards of quality, performance, and reliability, delivering world-class solutions for modern manufacturing.

Extended Warranty & 24�7 Support

We provide comprehensive warranty program, dedicated technical support, preventive maintenance, remote diagnostics, and rapid-response service assistance to keep our customer operations running smoothly.

Precision Engineering Solutions

We offer a comprehensive range of CNC machining solutions, from boring machines to multi-axis triplex centers, engineered for precision and industrial scalability.

IMG 540

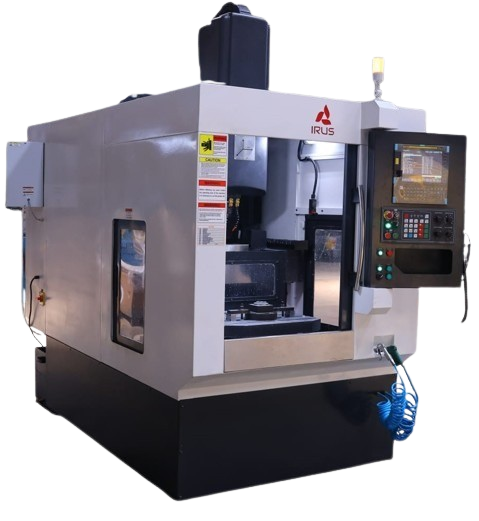

IMG 650

IMG 860

IMG 1080

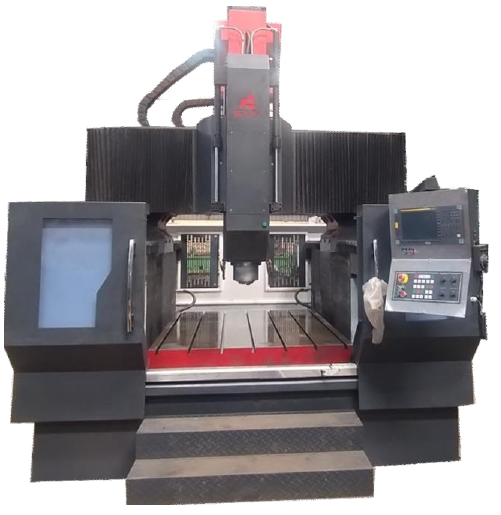

IMG 1200

IMG 1600

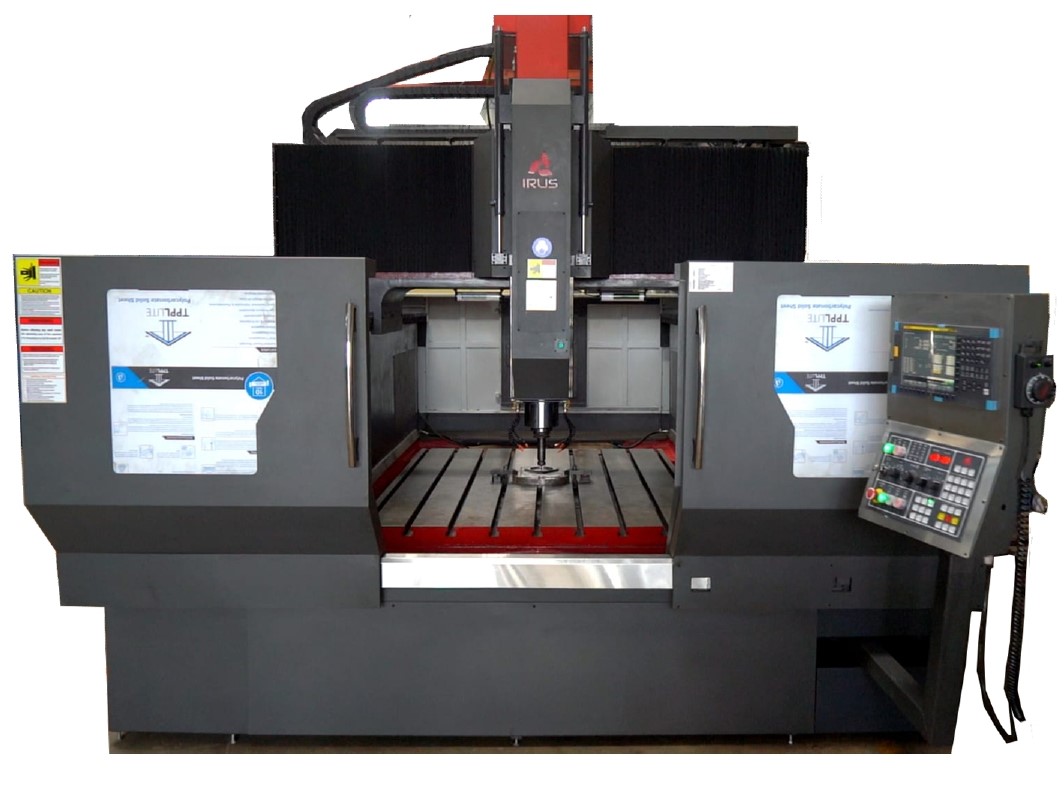

IMG 2200

IMG 3200

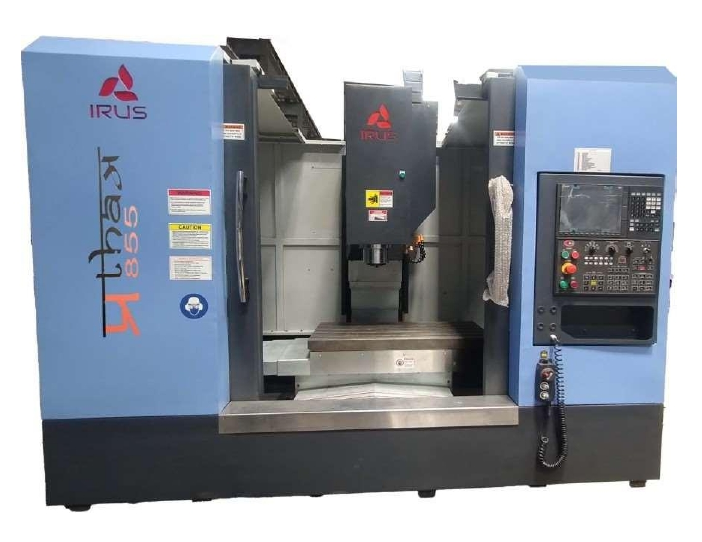

IMV - 650

IMV - 855

IMV - 1160

IMV - 1375

IMD-2212

IMD-3216

IMD-4216

IMD-3222

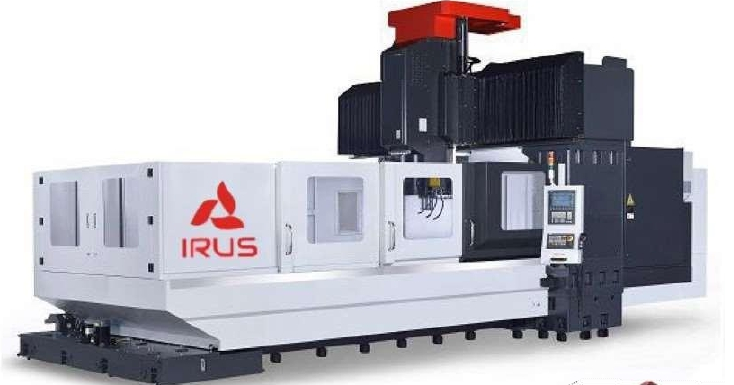

IMD-4222

IMD-5222

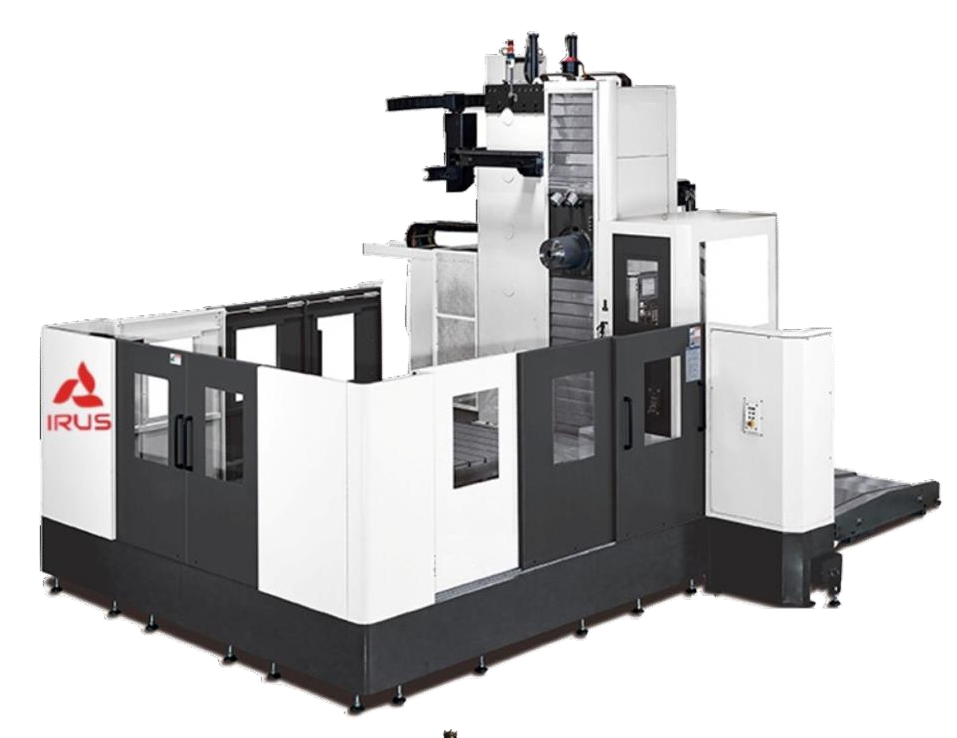

IRUS IMH500

IRUS IMH5000

IRUS IMH6300

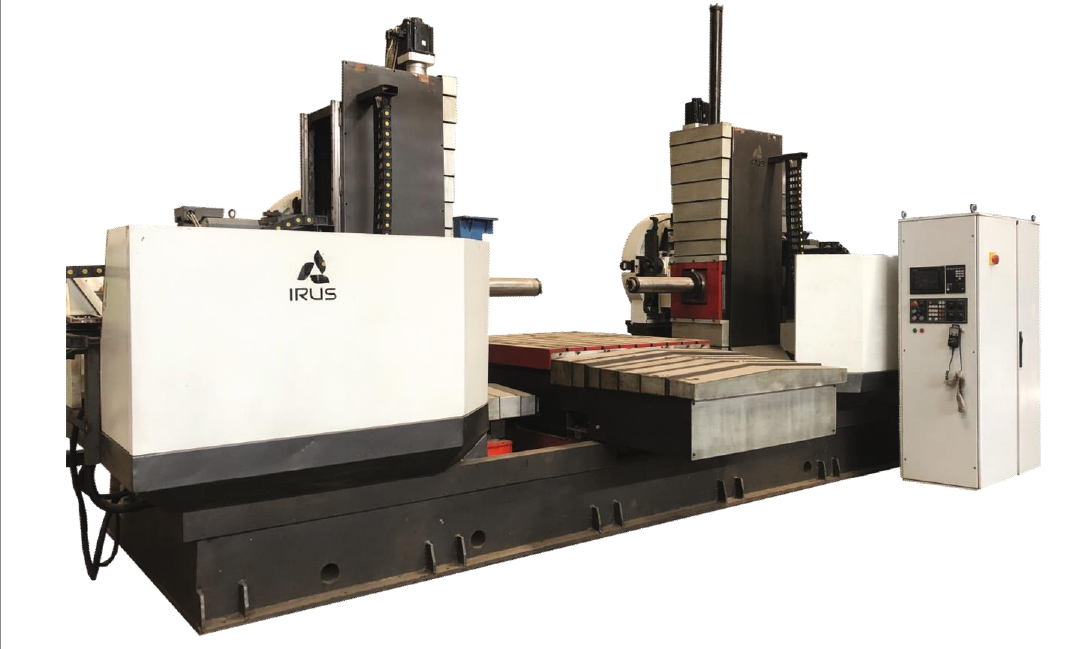

IRUS IMH8000

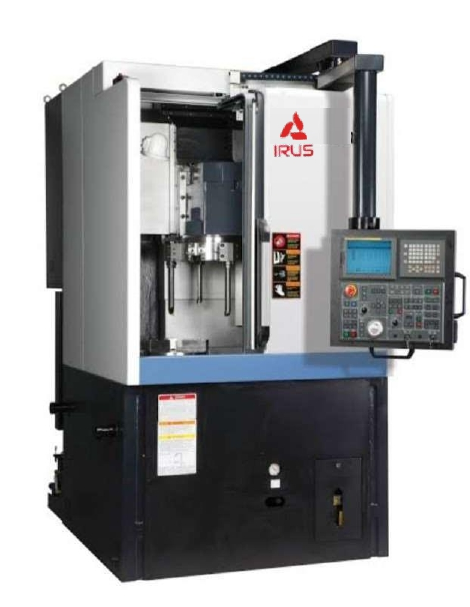

IVT500

IVT830

IMCM 1600

IMCM 2200

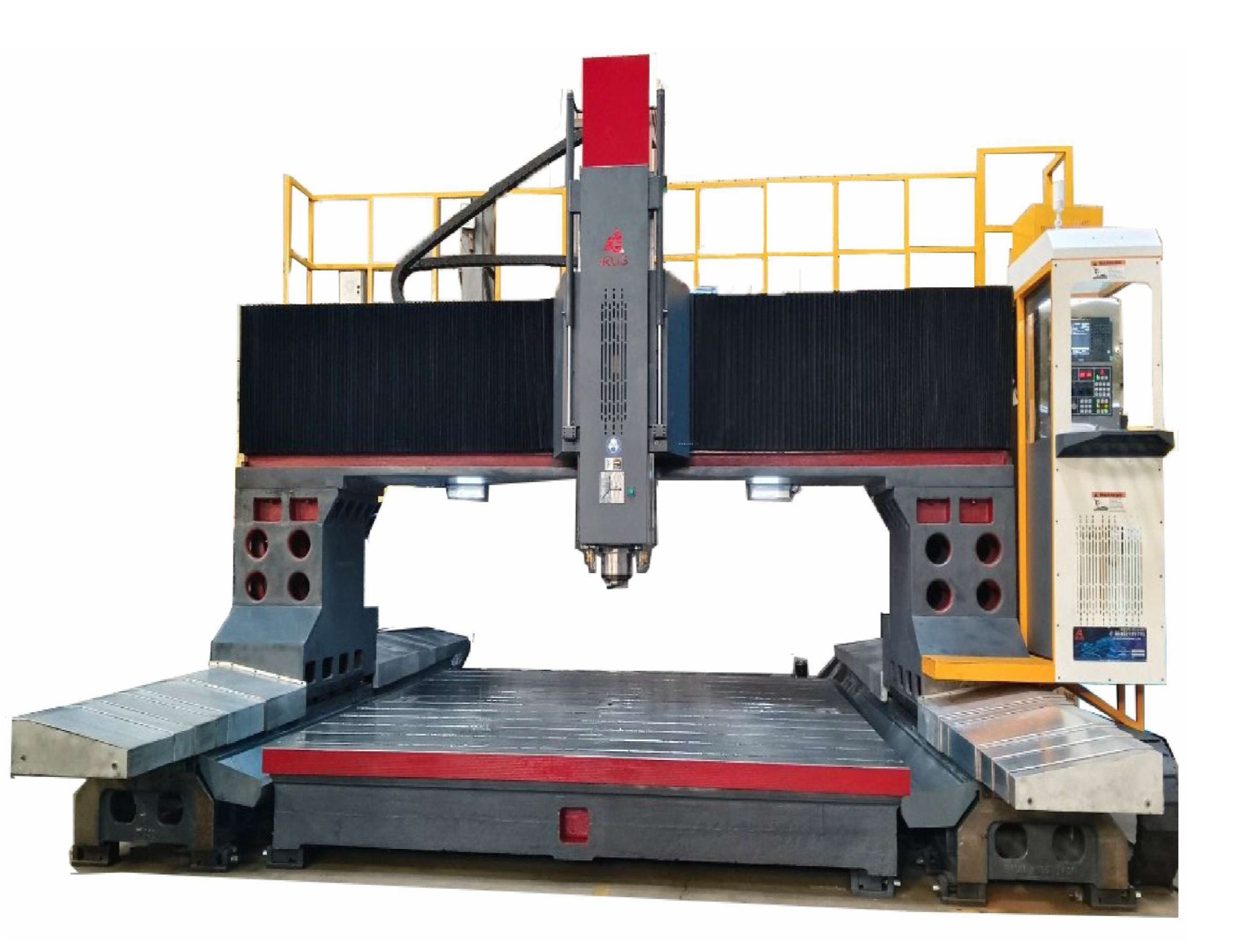

IMDM 3000

IMDM 4000

IMC 2500 / (IMCH)

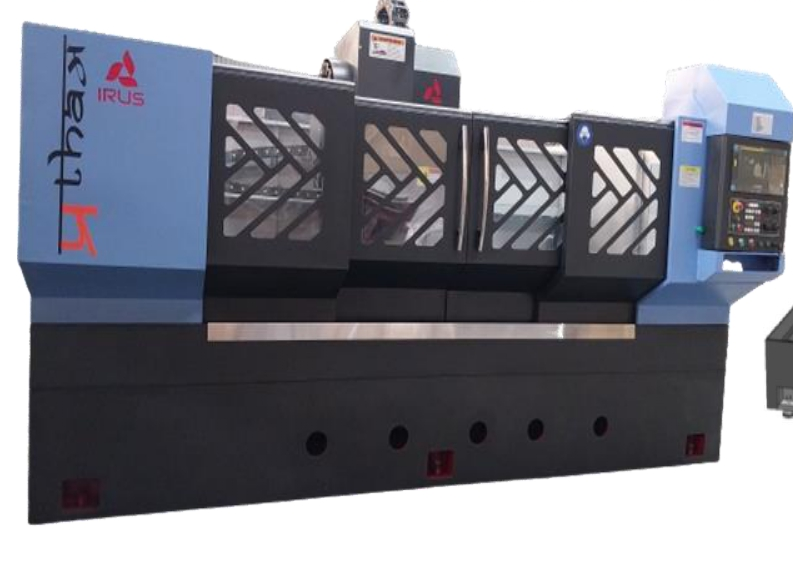

IMC 4500 / (IMCH)

IMC 6500 / (IMCH)

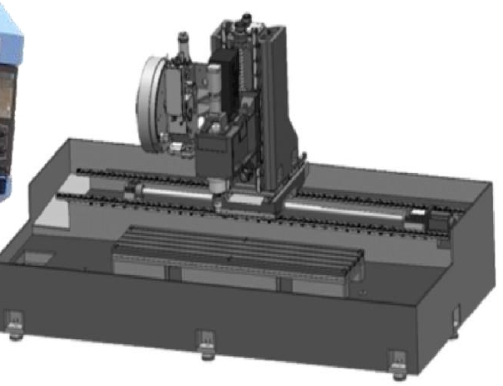

IMC 8500 / (IMCH)

Advanced CNC Solutions for Large, Complex & Precision Machining

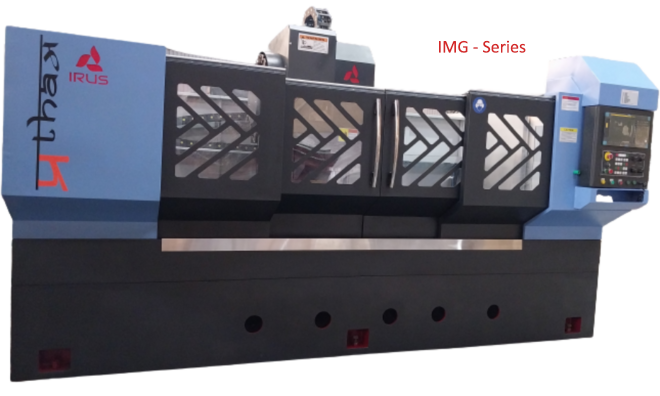

IMG - Series - CNC Gantry Vertical Machining Center

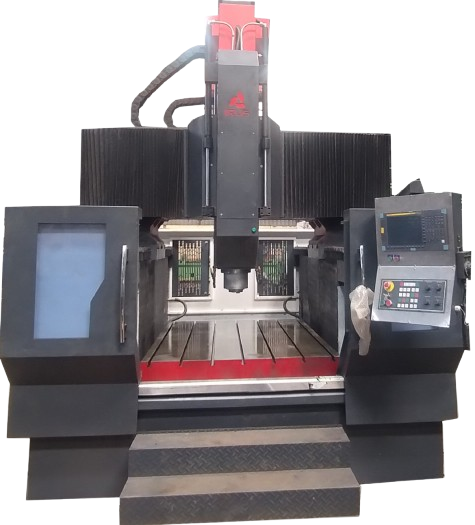

IMG - Series - CNC High Speed Gantry Vertical Machining Center

IMG - Series - CNC Gantry Type Vertical Machining Center

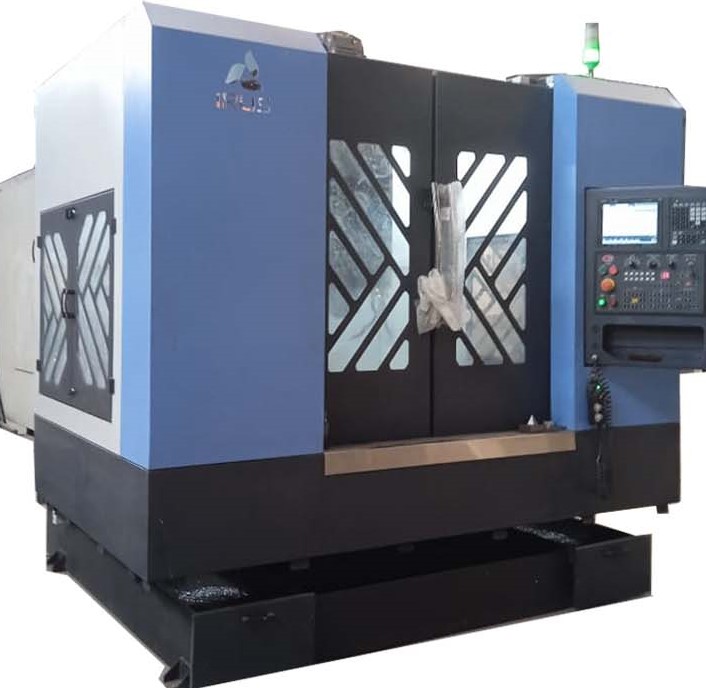

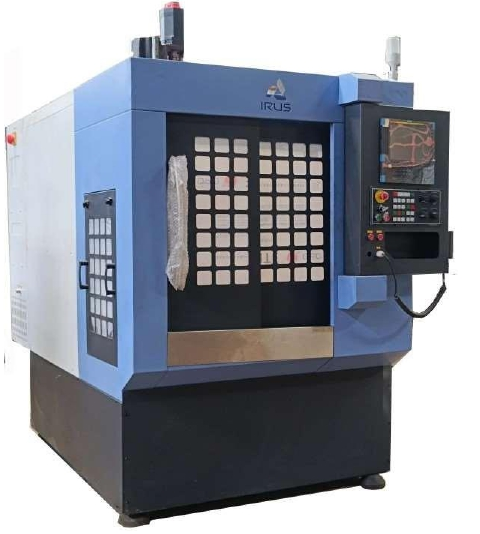

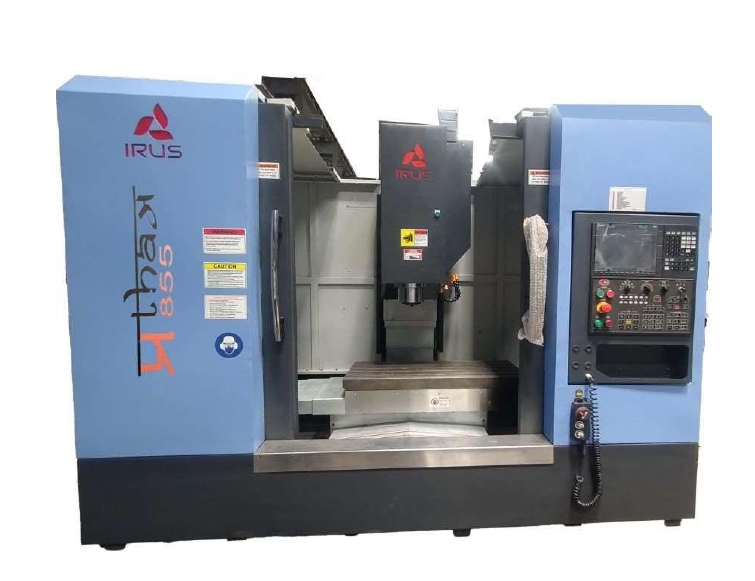

IMV - Series CNC Vertical Machining Center

IMD - Series Double Column Machining Center

IMH - Series Horizontal Machining Center

IVT - Series Vertical Turning Center

IMCM & IMDM - Series Moving Column Machining Center

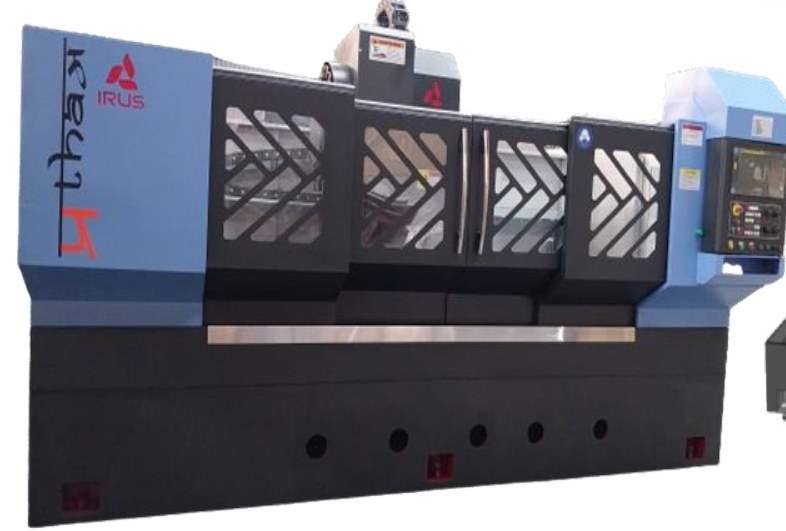

IMC - Series - Long Travel Moving Column VMC

Welcome To IRUS Engineering

Precision Engineering Solutions

IMG - Series - CNC Gantry Vertical Machining Center

IMG - Series - CNC High Speed Gantry Vertical Machining Center

IMG - Series - CNC Gantry Type Vertical Machining Center

IMV - Series CNC Vertical Machining Center

IMD - Series Double Column Machining Center

IMH - Series Horizontal Machining Center

IVT - Series Vertical Turning Center

IMCM & IMDM - Series Moving Column Machining Center

IMC - Series - Long Travel Moving Column VMC

Latest News

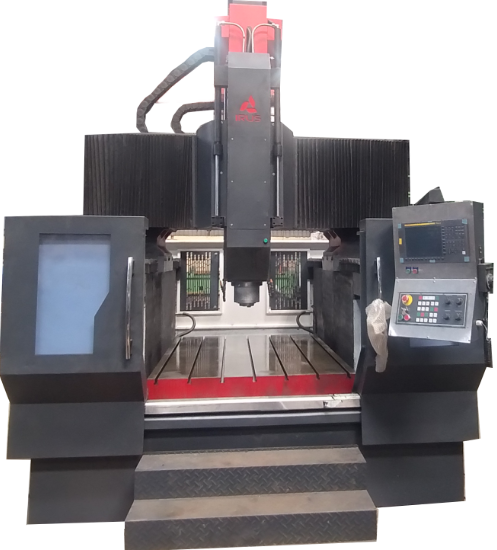

Exciting announcement Bridge Type High Speed Machining Center - IMG 1612

Long Travel Moving Column Machining Center #22

Exciting news

Advanced CNC Solutions for Large,
Complex & Precision Machining

Welcome To
IRUS Engineering
